Truck Topper Clamps
CLAMPS
B = Major Reach - Farthest point out to nearest point in
C = Minor Reach - Nearest point out to nearest point in
Tite Lok Clamp #3TL1
(picture of actual item)
Description: Tite Lok Clamp #3TL1 - For Truck Toppers with fiberglass or aluminum rails
- Silver
- A: 0 to 1 1/2" Clamping Range
- B: 1 7/8" Major Reach
- C: 1 1/8" Minor Reach
- This is our clamp of choice on most applications.
- It can be used with the 3TL150 or 3TL250 to complete the installation on Ford Trucks (2 clamps for the rear).
Item ID: 2525
Tite Lok Clamp #3TL105
(picture of actual item)
Description: Tite Lok Clamp #3TL105 - For A.R.E. Fiberglass Tonneau Covers or other tonneau covers with similar rails (Leer 500 Series, Century Cargo Cover, and others)
- Silver
- A: 0 to 7/8" Clamping Range
- B: 1.8" Major Reach
- C: 0.9" Minor Reach
- Can be used to clamp Fiberglass Tonneaus and Toppers with Aluminum Rails
Item ID: 2526
Tite Lok Clamp #3TL150
(picture of actual item)
Description: Tite Lok Clamp #3TL150 - Designed for 1997-2003 Ford F150's on Toppers with Aluminum Rails - Gives the needed Reach to clamp the front of the topper.
- Silver
- A: 0 to 1 3/8" Clamping Range
- B: 2 1/2" Major Reach
- C: 1" Minor Reach
- If using 4 clamps on your topper only 2 of these clamps are needed
If using 6 clamps on your topper 4 of these clamps may be needed
Item ID: 2527
Tite Lok Clamp #3TL250
(picture of actual item) Description: Tite Lok Clamp #3TL250 - Designed for 1999 - Current Ford F250/350 Super Duty & 2004 - Current Ford F150's on Toppers with Aluminum Rails (aluminum toppers) - Gives the needed Reach to clamp the front of the topper.
- Silver
- A: 0 to 1 3/8" Clamping Range
- B: 3" Major Reach
- C: 1" Minor Reach
- If using 4 clamps on your topper only 2 of these clamps are needed
If using 6 clamps on your topper 4 of these clamps may be needed
Item ID: 2528
Tite Lok Clamp #TL118
Description: Tite Lok Clamp #TL118 - Designed for mounting Toppers with Aluminum Rails (aluminum toppers and some fiberglass toppers)
- Silver
- A: 0 to 1 3/4" Clamping Range
- B: 1 1/2 " Major Reach
- C: 3/4" Minor Reach
Item ID: 2529
Tite Lok Clamp - Twist Extra Reach
(Actual item may vary from image above)
Description: Tite Lok Clamp - Designed for mounting Toppers with Aluminum Rails (aluminum toppers and some fiberglass toppers)
- Silver
- A: 0 to 2 1/2" Clamping Range
- B: 2 1/8" Major Reach
- C: 1 1/8" Minor Reach
- Twist handle can be removed for easy ratcheting
Item ID: 2530
Tite Lok Clamp #32007
(picture of actual item)
Description: Tite Lok Clamp #32007 - Designed for truck toppers with fiberglass and aluminum rails - Gives Extra Reach
- A: 0 to 1 3/8" Clamping Range
- B: 2 1/2" Major Reach
- C: 1 3/4" Minor Reach
- 1 3/4" Wide
- Bigger Clamp for extra reach
Item ID: 2531

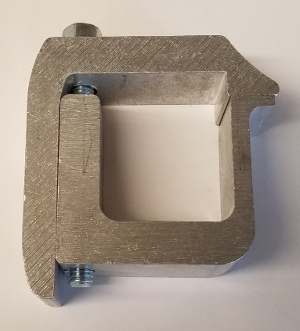

Great Creation Clamp
(picture of actual item)
Description: Great Creation clamp # G-3 - Designed for truck toppers with fiberglass and aluminum rails - Gives Extra Reach
- A: 0 to 1 3/4" Clamping Range
- B: 2 3/8" Major Reach
- C: 1 3/4" Minor Reach
- 1" Wide
- Extra reach
(picture of actual item)
Description: Tite Lok Clamp #3TL4 - Designed for truck toppers with fiberglass and aluminum rails - Gives Extra Reach
- A: 0 to 2 3/16" Clamping Range
- B: 2 15/16" Major Reach
- C: 2 3/16" Minor Reach
- 1 1/8" Wide
- Biggest Clamp for extra reach
Item ID: 2532

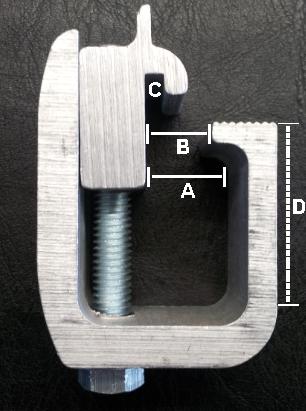

Great Creation Tonneau Cover Clamp
(picture of actual item)
Description: Great Creation Tonneau Cover Clamp with work on ARE, Glasstite and other tonneau covers. Hooks into the track of the rail and clamps under the truck bed rail. Can be used in place of the plastic ARE clamps.
- A: 7/8"
- B: 9/16"
- C: 1/8" (Hook Space)
- D: 1 3/4" (Ridges to the bottom inside of clamp)
Item ID: 2533
Tite Lok Clamp #70104
(picture of actual item)
Description: Tite Lok Clamp #70104 - Used on most Leer Fiberglass Toppers with fiberglass rail
(fiberglass rail must have knock outs for clamps formed into the rails). These clamps are also used as a Tool Box clamp
- Silver
- Sold in a pair of 2
- Mount most late model Leer fiberglass toppers with fiberglass rails
- Use one pair to mount Tool Boxes
Item ID: 2534
Leer TSC 600 Tonneau Cover Clamp - Front or Center
(picture of actual item)
Description: These clamps work on tonneau covers with aluminum rails that have a track for the clamp to install in. This clamp usually mounts to the front or the center of the rail.
- Silver
- Front or Center Mount Clamp
- Mounts to Leer TSC600, Some LoRider, and other tonneau covers.
Item ID: 2535
Leer TSC 600 Tonneau Cover Clamp - Rear
(picture of actual item)
Description: These clamps work on tonneau covers with aluminum rails that have a track for the clamp to install in. This clamp usually mounts to the rear of the rail.
- Silver
- Rear Mount Clamp
- Mounts to Leer TSC600, Some LoRider, and other tonneau covers.
Item ID: 2536
Toyota Tacoma/Tundra Clamps (with utility track)
for Leer Truck Caps or Tool Boxes
(picture of actual item)
Description: These clamps work on Leer truck caps with fiberglass rails or on tool boxes. They slide in the track of the Toyota Tundra or Tacoma for easy installation.
- Silver
- Mount most late model Leer fiberglass toppers with fiberglass rails to Toyota Tundra and Tacoma (4 required)
- Can also be used to mount a tool box (2 required)
Item ID: 2537
Toyota Tundra/Tacoma Fiberglass Cap Clamp (with utility track)
(picture of actual item)
Description: Tite Lok Clamp #TL3-24 - Designed for 2005+ Toyota Tacoma and 2007+ Toyota Tundra with track system
- A: 1 3/8" to 1 7/8" Clamping Range
- B: 2 1/2"Major Reach
- C: 1 3/4"Minor Reach
- For use on fiberglass truck caps
Item ID: 2538
Toyota Tundra/Tacoma Aluminum Cap Clamp (with utility track)
(picture of actual item)
Description: Tite Lok Clamp #TL1-24 - Designed for 2005+ Toyota Tacoma and 2007+ Toyota Tundra with track system
- A: 1 3/8" to 1 7/8"Clamping Range
- B: 2"Major Reach
- C: 1 1/4" Minor Reach
- For Aluminum Caps
Item ID: 2539
Nissan Titan Clamp (with utility track) for Leer
Truck Caps or Tool Boxes
(picture of actual item)
Description: Tite Lok Clamp #TL33007 - Designed for 2004+ Nissan Titans with track system
- Sold in Pairs
- Clamp slides in track and secures truck cap with provided bolt
- For use with Leer Fiberglass Truck Caps
- Can also be used as a tool box clamp
Item ID: 2540
Tite Lok Hinged Clamp
(picture of actual item)
Description: Tite Lok Clamp - For tonneau covers with rails that mount flush to the inside of the truck bed rail. Will work on most Leer 550 and 700 tonneau covers and some soft roll up tonneau covers like the Access Cover and Truxedo Lo Profile.
- Silver
- Opens: 1/2"
- 1 3/8" from top to bolt
- 1" wide
- 2 3/8" long
Item ID: 2541
