Truck Topper Door Hinges

TOPPER REAR DOOR HINGES
Leer 100XL/LE/XR - All Glass Rear Door - Hinge - 2 Hole

This kit includes everything needed to install.
(Picture of actual kit)

Description: Leer 100XL/LE/XR - All Glass Rear Door Hinge - 2 Hole
Same part for Left and Right (if two are needed - order quantity two)
Hinges are as displayed in first image
Includes gasket, mounting bolt/nut, washers and screws
1 Hinge per kit
Item ID: 3725

Leer 100XL/LE/XR - All Glass Rear Door Hinge - 1 Hole

1 Threaded Stud (above)
(picture of actual item)

Description: Leer 100XL/LE/XR - All Glass Rear Door Hinge - 1 Hole
Same part for Left and Right (if two are needed - order quantity two)
Hinges are as displayed in above image
Includes gasket, mounting bolt/nut, washers and screws
1 Hinge per kit
Item ID: 3726

All Glass Rear Door Hinges - With Aluminum Frame - 1 Stud

1 Threaded Stud and 2 Mounting holes (above)

Description: All Glass Rear Door Hinges for Doors with Aluminum Frames
Same part for Left and Right (if two are needed - order quantity two)
Hinges are as displayed in images above
No other hardware is included
Item ID: 3726
Discontinued - No Longer Available

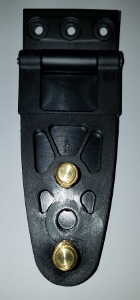

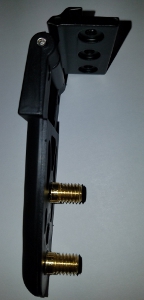

All Glass Rear Door Hinges - With Aluminum Frame - 2 Stud

(Image of actual item)
2 Threaded Stud and 3 Mounting holes

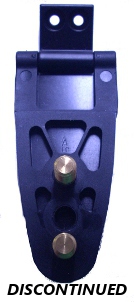

If your hinges is like the hinge shown directly above, then it must be replaced with the 3 mounting hole hinge shown above.
(Modifications are required when replacing 2 mounting hole applications)

Description: All Glass Rear Door Hinges for Doors with Aluminum Frames
Same part for Left and Right (if two are needed - order quantity two)
Hinges are as displayed in images above
The hinge with the two mounting holes has been replaced with a three mounting hole part for extra durability.
New holes will have to be drilled to complete installation.
No other hardware is included
Item ID: 3727

DCC Commercial Cap Rear Door Hinge

(picture of actual item)

Works on Commercial Steel DCC truck caps
Chrome finigh
4 hole installation
Mounting screws and nuts included
Item ID: 3728

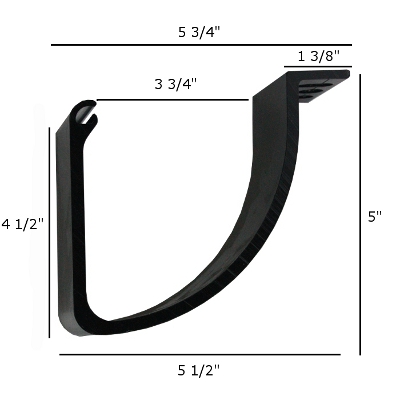

Leer 100XQ Hinge Kit (Standard Reach) - Hinge Kit
(includes main hinge body)
(includes hinge mounting bracket - topper side)
(includes hinge mounting plate with screws - door side)
(view of hinge installed)

Description: Leer 100XQ All Glass Rear Door Hinge - Complete One Side Kit
Same part for Left and Right (if two are needed - order quantity two)
Hinges are as displayed in images above
Includes all mounting hardware
Kit Includes:
1 - Main Hinge Body
1 - Main Hinge Body set screw
1 - Main Hinge Body Gasket - Door side
1 - Topper Side Mounting Plate with bolts
1 - Mounting Plate Washer (3 Hole)
1 - Hinge Mounting Leaf
3 - 3/8" Nuts
3 - 1/4" Nuts
1 - Mounting Plate Door Side
2 - Mounting Plate Screws
Individual components are listed below
Item ID: 3729

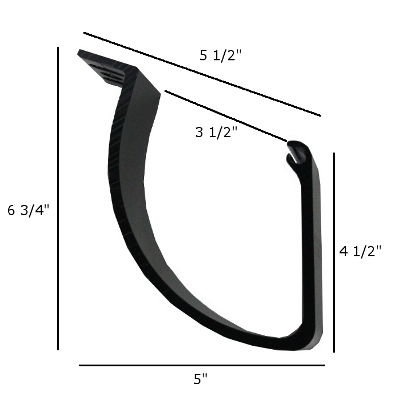

Leer 100XQ Hinge Kit (Extended Reach) - Hinge Kit
(includes main hinge body)
(includes hinge mounting bracket - topper side)
(includes hinge mounting plate with screws - door side)
(view of hinge installed)

Description: Leer 100XQ All Glass Rear Door Hinge - Complete One Side Kit
Same part for Left and Right (if two are needed - order quantity two)
Hinges are as displayed in images above
Includes all mounting hardware
Kit Includes:
1 - Main Hinge Body (Extended Reach)
1 - Main Hinge Body set screw
1 - Main Hinge Body Gasket - Door side
1 - Topper Side Mounting Plate with bolts
1 - Mounting Plate Washer (3 Hole)
1 - Hinge Mounting Leaf
3 - 3/8" Nuts
3 - 1/4" Nuts
1 - Mounting Plate Door Side
2 - Mounting Plate Screws
Individual components are listed below
Item ID: 3732

Leer 100XQ Hinge - Main Body
(includes main hinge body)

Description: Leer 100XQ All Glass Rear Door Hinge - Main Body Only
Same part for Left and Right (if two are needed - order quantity two)
Hinges are as displayed in images above
Includes:
1 - Main Hinge Body
1 - Main Hinge Body set screw
1 - Main Hinge Body Gasket - Door side
More Individual components are listed below
Item ID: 3730

Leer 100XQ Hinge - Bolt Mounting Plate and Bracket
(includes hinge mounting bracket - topper side)

Description: Leer 100XQ All Glass Rear Door Hinge - Bolt Mounting Plate and Bracket Only
Same part for Left and Right (if two are needed - order quantity two)
Hinges are as displayed in images above
Includes all mounting hardware
Kit Includes:
1 - Topper Side Mounting Plate with bolts
1 - Mounting Plate Washer (3 Hole)
1 - Hinge Mounting Leaf
3 - 3/8" Nuts
3 - 1/4" Nuts
More Individual components are listed below
Item ID: 3731

Leer 100XQ Hinge - Door Mounting Plate
(includes hinge mounting plate with screws - door side)
(Outside View)

Description: Leer 100XQ All Glass Rear Door Hinge - Door Mounting Plate and Screws Only
Same part for Left and Right (if two are needed - order quantity two)
Includes all mounting hardware
Includes:
1 - Mounting Plate Door Side
2 - Mounting Plate Screws
Item ID: 3628
