Leer 100XL/LE/XR - All Glass Rear Door Hinge - 2 Hole
Universal Fit
Item ID: 3725
- 1 Hinge per kit
- Hinge Body Length: 4-1/2"
- Bottom to center of first mount: 9/16"
- Bottom to center of second mount: 1-3/4"
POSSIBLE SUBSTITUTE: Leer 100XL/LE/XR - All Glass Rear Door Hinge - 1 Hole and 1 Blank Stud
- Same part for Left and Right (if two are needed - order quantity two)

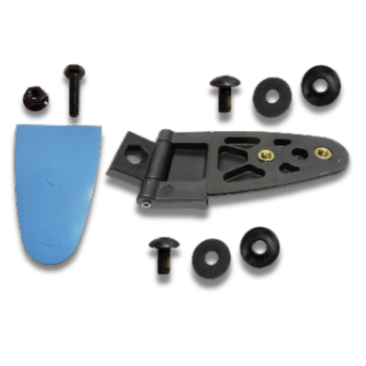

- Hinges are as displayed in first image
- Includes gasket, mounting bolt/nut, washers and screws
- 1 Hinge per kit
- Hinge Body Length: 4-1/2"
- Bottom to center of first mount: 9/16"
- Bottom to center of second mount: 1-3/4"
 | Prop 65 WARNING |
Prop 65 WARNING: This product can expose you to chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Customer reviews
-
Jeff ZormeierJun 15, 2024, 22:13I called 3 different topper stores in my area including the one I bought my topper from and no one had parts. One company even said the company that made my topper is out of business.
I found truck outfitters online and they had the exact parts I needed. Order was shipped promptly. Parts were an exact match. -
Will DuchajJun 14, 2024, 19:44These hinges were the exact fit for my Raider Vagabond truck cap. I was very impressed that Truckoutfitters had the parts available and they were shipped in a very prompt manner. I appreciate that my cap is once again functional!
-
Greg AndersonSep 28, 2023, 10:40These worked perfectly on for my canopy. I broke one of the existing and replaced both, perfect fit. (2011 Ford F-350 with a Leer Canopy)
-
Michael HartmanSep 16, 2023, 21:11Easy to order and it fit perfectly! Thank you.
-
Wayne SmithAug 3, 2023, 14:23Very good customer service.
